Our range of products include CAD CAM Dental Milling Scanner, P52 5 Axis Zirconia Dental Milling Machine, 5 Axis P5 Cad Cam Dental Milling Machine and P4 Wet Dental Milling Machine.

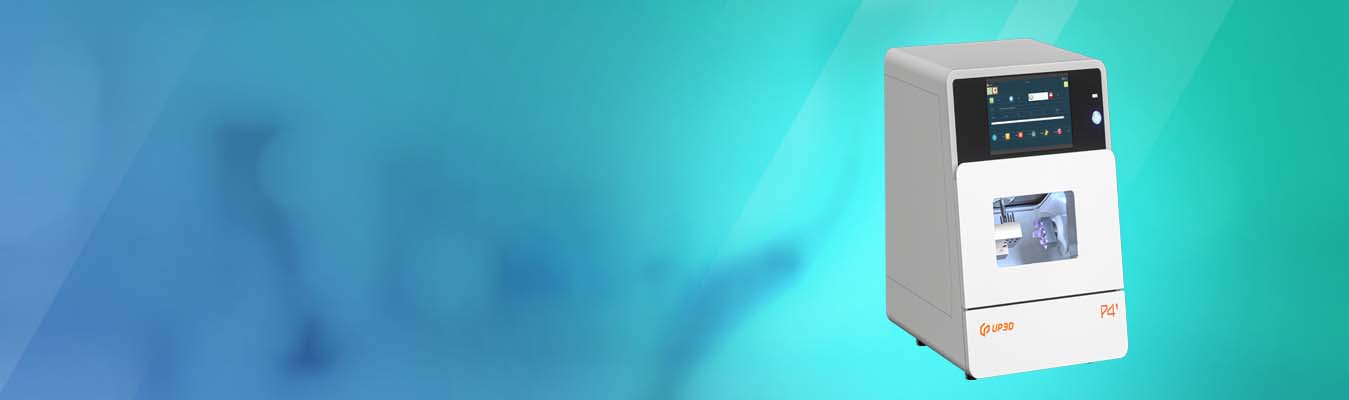

Dental CAD CAM Milling And Scanner Machine
CAD CAM Dental Milling Scanner
5 axis Smart Dental Milling Machine P5
- All Hardware and Software are developed by UP3D.
- Intelligent Control System Perfectly Merged with One- Piece Framework Structure.
Axis Simultaneous Milling
- Special Material Saving Processing Strategy and nesting method , Zirconia disk C- clamp mode.
One Piece Framework Structure
- Durable in use, More stable and anti- dust
High Precision and High Speed Milling
- Max Feed rate can reach 3000MM/MIN Max Rorate Speed is 40,000- 60,000 Rpm
Auto Calibration
- The Most Convenient and smart control system among the dental milling machines.
Highly Integration of UPCAM and P5
- Customized Milling Strategies according to the customers requirements.
P52 5 Axis Zirconia Dental Milling Machine
5 axis milling machine for One and ALL
Smart dental5-axis milling machineModel Dimension Weight-Input voltage Max power Spindle power Axis Milling range-Milling mode-Max rotate speed-Max feed rate- Tools library Tools changing-Spindle cooling Milling materials-Milling time-Tools diameter
P4 Wet Dental Milling Machine
4-axles Wet Dental Mill
P41 is a four-axis chairside grinding machine independently developed by Shenzhen UP3D Technology Co.. Ltd. P41 adopts wet processing. vertical structure design, and it perfectly matches intelligent control system. energy saving 60-80% compared with traditional equipment. key control components adopts high-quality original parts. and screw rods. guide rails and other components are mainte-nance-free design which reducing trouble with professional maintenance of equipment.
Dental CAD CAM Scanner
| Cleaning Type | Manual |
| Type | Non contact blue light scanner |
| Usage/Application | Scanning |
| Model Name/Number | up300e |
| Operation Mode | Electricity |
| Speed | Multi-die scan20s Model scanning 25s |
| Packaging Type | Box |
| Working Temperature | 5-45 degree |
| Type Of Dental Equipment | Dental lab scanner |
| Brand | UP3d |
| Pieces Pack | 1 |
| Material | Metal |
| Size | 300*330*400 (mm) |
| Scan range | 100*100*75 (mm) |
| Weight | 10kg |
| Camera | 2*1.3MP |
| Scanning mode | Non contact blue light scanner |
| Power supply | AC110-220V 50HZ |
| Interface | USB 3.0 |
| automation | Automatic registration and intelligent hole filling |
| Accuracy | 10 micron |
Product parameters
- Size 300 * 330 * 400mm
- Weight 10kg
- Scan range 100*100*75mm
- Scanning mode non contact blue light scanner
- Camera2*1.3MP
- Projector Customized blue-light, support multi-color scanning Interface USB 3.0
- Power supply AC110-220V
- 50HZ Speed multi-die scan
- 20s Model scanning
- 25s Precision 10μmOutput formats
- OBJ automation Automatic registration and intelligent hole filling
UP3D 300 Plus Dental Scanner
| Type | 2 megapixel camera x 2 |
| Usage/Application | model scanner |
| Operation Mode | Automatic |
| Speed | 10 seconds |
| Packaging Type | Sealed box |
| Sterility | Sterile |
| Working Temperature | Cool and dry area |
| Type Of Dental Equipment | Dental lab scanner |
| Brand | up3d |
| Pieces Pack | 1 |
| Material | Metal |
| Country of Origin | Made in India |
| Micron | 10 |
Dental scanner
- Size 300*300*4 mm
- Technology Structure blue light
- Weiget 10kg
- Camera 2*1.3 MP High frame rate
- Projector Customized blue-light, support multi-color scanning
- Interface USB 3.0
- Input AC 110-220V,50HZ
- Precision < 10μm
- Output
3shape Trios Dental Scanner Cart
| Type | 6.9 micron |
| Usage/Application | Oral Therapy |
| Operation Mode | LIGHT camera |
| Speed | Soft Tissue Elimination , AI 2.0 |
| Packaging Type | Box sealed |
| Sterility | 150 times ,1 sleeve |
| Working Temperature | Cool and dry area |
| Type Of Dental Equipment | IOS |
| Brand | 3 shape |
| Pieces Pack | 1 set |
| Material | ABS medical grade |
| COUNTRY | Copenhagen, Denmark |
| Scanning | colour scanning |
| installation | 1 day |
| USP | Treatment simulator smile design |
Deliver excellent outcomes Find out why precise digital impressions support excellent treatment outcomes.
Engage more with patients Learn how to boost case acceptance with 3Shape TRIOS digital scanners and engagement apps
Have a great digital experience See 3Shape recipe for a digital experience that will make you – and your patients – smile.
Be proud of your practice Discover the secret to happier patients and a more successful practice with TRIOS intraoral scanners
UP360 Plus Dental Scanner
| Model Name/Number | Up360 + |
| Brand | up3d |
| Material | METAL |
| Cleaning Type | Surface Cleaning |
| Usage/Application | Industrial |
| Operation Mode | Electricity |
| Weight | 10kg |
| Features | Unsectioned model |
| Output Power | STL/PLY/UM/OB |
| Speed | 8 seconds |
| Packaging Type | Box |
| Working Temperature | 25 c. |
| Type Of Dental Equipment | dental lab scanner |
| Technology | Structure blue light |
| Pieces Pack | 1 |
| Camera | 2*2.0 (MP) |
| input | 0AC 110-220V,50HZ |
Product Details:-
- Size 300 × 300 × 400mm
- Technology Structure blue light
- Weight 10kg
- Camera 2 2.0 (MP)
- Projector: Customized blue light
- Interface: USB 3.0
- Input : 0AC 110-220V,50HZ
- Precision 6
- Output: STL/PLY/UM/OB
UP360 Dental Scanner
We are offering UP360 Dental Scanner to our client.
| Usage/Application | model scanner |
| Operation Mode | Electricity |
| Speed | 8 seconds |
| Type Of Dental Equipment | dental lab scanner |
| Brand | up3d |
| Material | zirconia model wax plaster 3d resin |
| Country of Origin | Made in India |
| Micron | 6mu |
Intra Oral Scanner
It is designed with ergonomics in mind & features a Slim, lightweight handpiece with optimal grip design and a rotating tip. It also offers premium features such as color capture and a built-in heater to prevent fogging.
| Dimensions Scanner | Size: L 256 mm, W 43mm, H 43 mm |
| Dimensions Base | Size: L 306 mm, W 98 mm, H 72 mm |
| Acquisition Method | Active Stereo Imaging |
| Acquisition Method | 24 bit (8-bits per channel) |
| Acquisition Method | 1.8 meters |
Product Details:-
- Accurate Shoulder Margin
- Convenient Preparation Check
- Fast Scanning Speed
- Portable and easy to Operate
Intra Oral Sensor
CMOS Technology.
| Unique Size 1.5 | Extra active area 34% |
| High Comfortable | Cut Corners & Rounded Edges. |
| Fast Data Transfer | Direct USB Connecter |
| Water & Dust Proof | Hermetically Sealed |
| Higher Image Resolution | 17lp/mm |
| Fast Work Flow | EzDent-i Viewer Software |
| 2 in 1 Consultation Tool | EzCodi Consult Software |
Product Details:-
- Ultra Slim
- Fast and Easy Diagnostic Images
- Real Mobile Solution
- Remarkable Image Quality
- Quantum Efficiency
P53 dental 5-axis milling machine
| Model | P53 |
| Dimension | 443.5 × 718 × 628.5 （ m m ) |
| Weight | 87Kg |
| Input voltage | AC 185~235V 、 50~60Hz |
| Max power | 0.8KW |
| Spindle power | 0.52KW（max） |
| Axis | 5-axis simultaneous motion |
| Milling range | X/Y/Z ： 170/215/105mm A ： ±30° B ： 360° |
| Milling mode | Dry milling |
| Max rotate speed | 30,000rpm |
| Max feed rate | 3000mm/min |
| Tool library | 11 |
| Tools changing | Automatic （ Air pressure >0.5MPa ） |
| Spindle cooling | Air compression （ Air pressure 0.25~0.35MPa ） |
| Milling materials | Zirconia, Wax, PMMA, PEEK and soft materials |
| Milling time | Coping ： Zirconia-10min Wax- 4.5min, Crown ： Zirconia-13min Wax-5.5min |
| Tools diameter | 2+1+0.6 （ Φ 4 ） |
Product Details:-
- Intelligent initialization
- Simple installation
- Automatic calibration
- One-piece casting framework
- Support multiple restoration cases
- Ultra-thin veneer
- Supports the 90° vertical milling

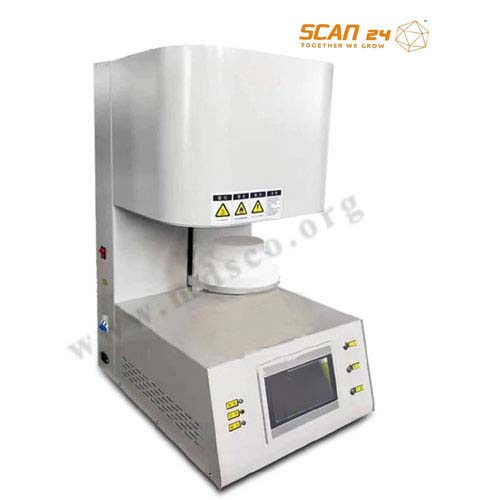

Dental Sintering Furnace
Product Details:-
- Max temperature: 1700℃
- Working temperature: 1600℃
- Automatic program for heating, platform moving.
- The rated power is only 2kW, which is suitable for any small lab.
- High speed temperature increasing, 0-40℃/min.
- 7 inch HD touch screen, easy to operate, can store 30 different processes, programs.
- 5pcs Mosi2 is heated in a ring shape, higher furnace temperature uniformity.
Sintering Furnace is specially designed for the sintering of small batch samples crystal, structural ceramics, and polymer ceramics.
| chamber size | Dia100xH100mm |
| Max. temperature | 1700 ℃ (<2hour) |
| Working temperature | 800-1600℃ |
| Temperature controlling | -PID automatic control via SCR (Silicon Controlled Rectifier) power control with phase angle fired, current limiting resistor. -Touch screen panel which can store 30pcs different programs. -Built in PID Auto-Tune function with overheating & broken thermocouple broken protection. -Over temperature protection and alarm allows for operation without attendant. |
| Temperature accuracy | ± 1℃ |
| Temperature Uniformity | ± 5℃ |
| Heating rate | 0-30℃ /min |
| Thermocouple | B type (Pt-Rh to Pt-Rh) with 99.7% purity Alumina tube |
| Heating element | U type MoSi2 heating elements |
| Zirconia Sintering Furnace Chamber | -Sintering Furnace Three layers of ceramic fiber insulation materials -First layer: 1800℃ ceramic fiber board -Second layer: 1600℃ ceramic fiber board -Third layer: 1260℃ ceramic fiber board |
| Furnace structure | Double layer steel casing with dual cooling fan, surface temperature below 60℃ |
| Furnace door | -Elevator opening with platform -Power cutting off when furnace door open. |
| Outer dimension | About 550X420X810mm |
| Working voltage | 220V, 50HZ/60HZ, 1 phases (As per your order) |
| Rated power | 2KW |
| Weight | -Net Weight: about 90kgs -Gross Weight: about 110kgs |
| Certifications | CE |

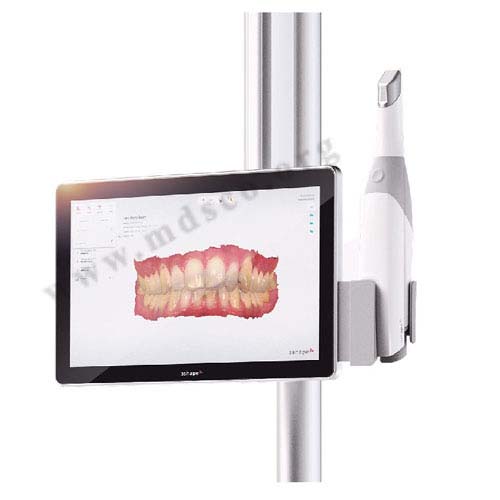

Shape Trios Move
Product Details:-
- Ultra Slim
- Fast and Easy Diagnostic Images
- Real Mobile Solution
- Remarkable Image Quality
- Quantum Efficiency
TRIOS MOVE comes with movable 15.6" size LCD touch screens with Adjustable arm and PC for fast and smooth scanning.
Its Compatible with TRIOS 3 Basic, TRIOS 3 and TRIOS
A USB 2.0 port on the backside of the screen to import and export scans.
What are the 4 modes of operation?
-Scanning mode
-Presentation mode
-Standing user mode
-Parking mode
Service bays
The move has 2 service bays; One at the top and one at the bottom of the pc backpack
| Dimension | 113 cm x 45 cm x 39 cm 120 cmx 50 cm x 60 cm 150 cmx50 cm x 60 cm |
| Weight | 14 Kg |
| Disk storage | 1 TB SSD |
| Connection | WiFi module supplied IEEE802.11b/g/n-24CH Wired Gigabit Ethernet. Ethernet IP allocation DHCP Bluetooth v4.0, Class 1 module supplied. |
| Display | 13.3 (16.9) Touch Display 1920 x 1080 Resolution |
| Processor | Intel i7 Quad core processor |
| Operating system | Windows 10 Enterprise 2016 LTBS , 64 bit |
| External Button and Connection | On/stand by Switch power socket |
| Input and Out put | Built in speaker USB3.0 Connector. |

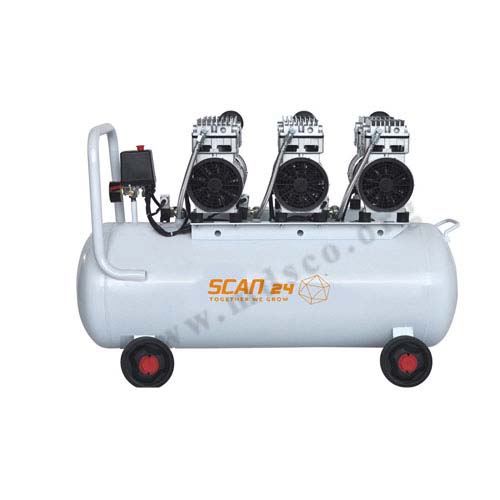

Air Compressor
Product Details:-
- Dental Air Compressor
- Drive Type - Direct Drive
- Weight - 28 kgs
A Dental Compressor pressurizes atmospheric air for use in dental procedures. After capture and compressing oxygen, it cleans and dries the gas and stores it away to be used for handsets, drills, and other types of units that need out ultra-clean compressed air to function. With safe standard, less heat and more safety control Strong power, Low Noise and Oil free complete dry air during treatment Metal Inlet pipe for durable, abstraction of heat and low noise.
| Brand | SCAN24 Compressor |
| Power Source | Air Powered |
| Item Dimensions LxWxH | 101.6 x 81.3 x 50.8 Centimeters |
| Capacity | 35 litres |
| Item Weight | 25 Kilograms |
| Noise Level | 62 Db |
| Maximum Air Flow Capacity | 116 PS |
| Air Flow Capacity | 116 pounds_per_square_inch |
| Colour | WHITE, BLUE |
| Number of Items | 1 |
