Providing you the best range of Vatech Dental OPG Machine and Vatech Dental X Ray Machine with effective & timely delivery.
Dental X Ray And OPG Machine

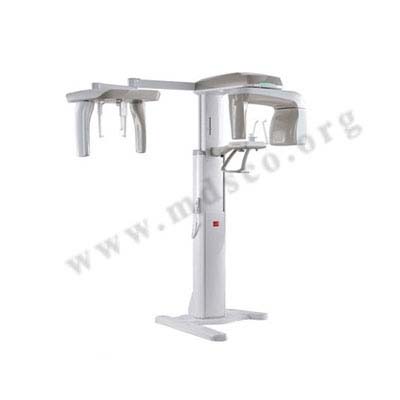

Dental OPG Machine
| Brand | Vatech |
| Model Name/Number | Pax i |
| Focal Spot | 0.5mm |
| Machine Type | Floor Mounted |
| Tube Current | 4-10 mA |
| Anodic Voltage | 50-90 Kvb |
| Operation Mode | Automatic |
| Function | Panoramic + Cephalometric |
| Sensor Type | CMOS |
| Gray Scale | 14bit |
| Scan Time | HD 13.5 sec / Normal 10.1 sec,Scan 12.9 sec / One-Shot 0.9 sec |
- 01 - Optimal Image Solution for Accurate Dental Diagnosis
- PaX-i provides the most precise and high quality panoramic image by innovative imaging process and accumulated experience in dental imaging from VATECH. It always enables you to perform an accurate diagnosis with great satisfaction from patients in your clinic.
- Various capture modes to meet all of diagnostic requirements.
- Capability to choose jaw shape and patient size to capture the most accurate image.
- Fast capturing mode, segmented capturing mode, child mode considering reduced X-ray dose & time saving.
- Advanced Image Solution for Orthodontist
- dedicated sensors for Pano and Ceph -> It allows for easy access to Pano / Ceph functions for increased workflow. types of Cephalometric on your requirement : One shot / Scan type.
- Superior image quality delivered by the highly sensitive Flat Panel X-ray Detector.
- nel X-ray Detector
- Dedicated Sensors for Pano/Ceph:- Without the hassle to change the sensor, users could perform Pano / Ceph exposure with fast and comfortable workflow.
- It allows for easy access to Pano / Ceph functions for increased workflow.
- Using a separate sensor extends the lifetime of sensors.

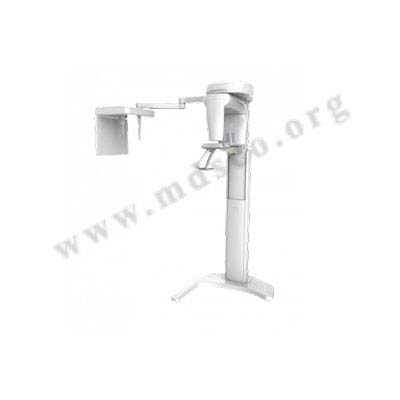

Dental X Ray Machine
| Brand | Vatech |
| Model Name/Number | Green x |
| Machine Type | Floor Mounted |
| AERB Approved | Yes |
| Operation Mode | Automatic |
| COUNTRY | korea |
Other Details:-
- Multi fov selection
- Green scan time
- Endo mode with high resolution
- Insight 2.0 feature

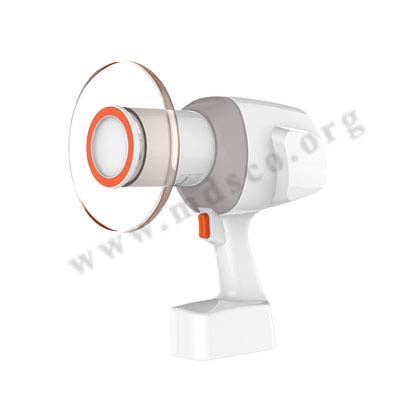

Portable X-ray
| Weight | 1.5 Kg |
| Focal Spot | 0.4 mm |
| Voltage | 60 kV(fixed) |
| Current | 2.5 mA (fixed) |
| Exposure Time Range | 0.05 - 0.5 sec |
| Total Filtration | Min. 1.5 mm AI |
| Maximum Duty Cycle | 1:60 |
| Power Input | 22.2 V |
| Battery | Replaceable |
| Line Voltage | 100-240 V + 10% |
Other Details:-
- Ergonomic Design
- Smart Positioning
- Smart Dial Type
- No Stress
- Accurate Images
- Saves Time
- Prevents Wrist Pain
- Reduces Motion Artefacts
- Prevents Accidental Damages

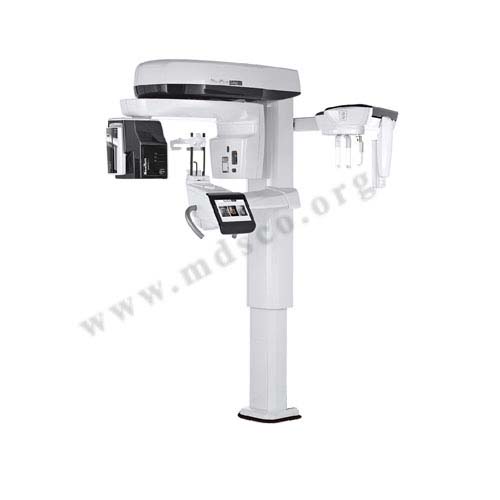

Dental CBCT
Features and Specialist:-
- 3 configurations to meet every need
- Unparalleled imaging
- Redefined 2D imaging
- Direct Conversion Detector
- 2D Performance and Precision
- 3D images. A broad range of FOVs
- 3D Sensor and generator
- Innovative image acquisition protocols
- Patient safety
- Patient comfort
| X-ray generator | |
|---|---|
| Generator type | Constant high frequency potential:100-180 kHz |
| Anode voltage | 2D: 60 kV – 85 kV | 3D: 90 kV (Pulsed mode) |
| Anode current | 2 mA - 16 mA |
| Focal spot | 0.5 mm (IEC 60336) - Fixed anode |
| Exposure Control | Auto-Adaptative with intensity modulation during rotation –SafeBeamTM Technology |
| Maximum continuous anode input power | 42 W (1:20 at 85 kV/10 mA) |
| Inherent filtration | 2D: >2.5 mm Al eq. (at 85kV) | 3D: 6.5 mm Al eq. (at 90 kV) |
| Image Acquisition | |
| Detector type | 2D: traditional with scintillator (CsI) or Direct Conversion (DCIII technology) 3D: high resolution Amorphous Silicon (CsI) |
| Image Dynamic Range | 2D Standard: 14 bit (16384 grey levels) 2D DC: 16 bit (65536 grey levels) | 3D: 16 bit (65536 grey levels) |
| Ergonomics | |
| Patient alignment | Supported by 4 laser guide lights marking reference planes and height of the FOV |
| Patient positioning | 7 head contact points |
| Adjustments | On-board keypad and/or virtual console for iPad (2-speed height drive) |
| Examination selection | Virtual console on PC, Windows tablet and/or iPad and from Full-Touch 10" on-board console |
| Notes | Easy access for patients in wheelchairs |
| Connectivity | |
| Connections | LAN / Ethernet |
| Software | NNT (ISDP©10003:2020 compliant in accordance with EN ISO/IEC 17065:2012 certificate number 2019003109-1) with Viewer software,free |
| Supported protocols | DICOM 3.0, TWAIN, VDDS |
| DICOM nodes | IHE compliant (Print; Storage Commitment; WorkList; MPPS; Query/Retrieve) |
| App iPad | Virtual control panel for the device and for the NNT 2D viewer |
| Installation | |
| Minimum available work space requirement | 2D and 3D PAN: 1400 x 1200 mm - 2D and 3D CEPH: 1400 x 1790 mm |
| Package dimensions (L) x (D) x (H) in mm | Machine Base: 1515 x 1750 x 670 mm - CEPH application: 1030 x 530 x 360 mm |
| Weight | 2D PAN: 155 Kg – 342 lbs | 2D CEPH: 175 Kg – 386 lbs 3D PAN: 155 Kg – 342 lbs | 3D CEPH: 175 Kg – 386 |
| Accessories | Wall bracket even at 45° or floor support, free standing base available User-friendly for patients on wheelchair |
